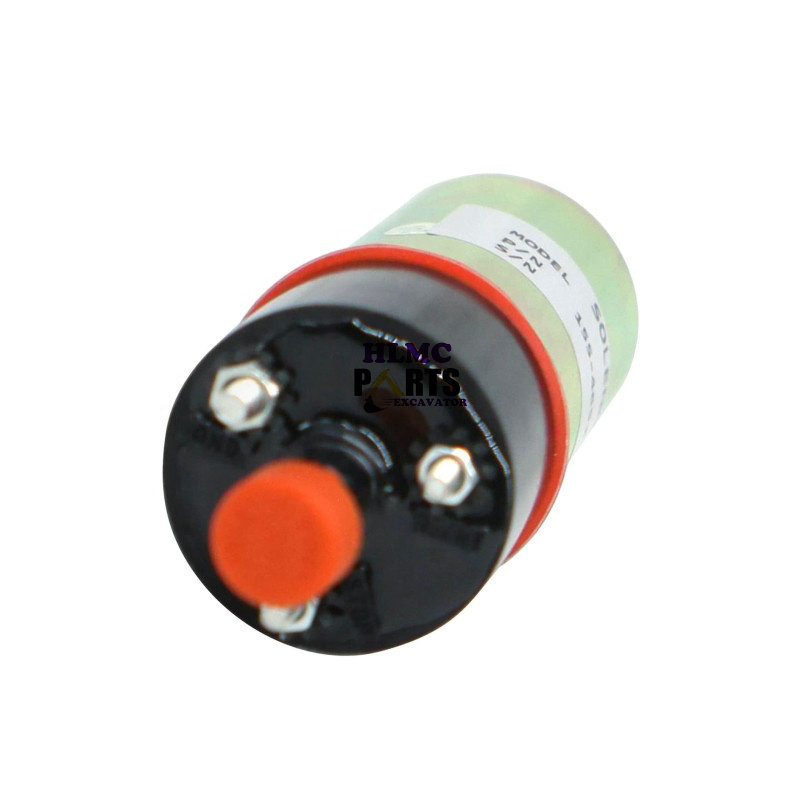

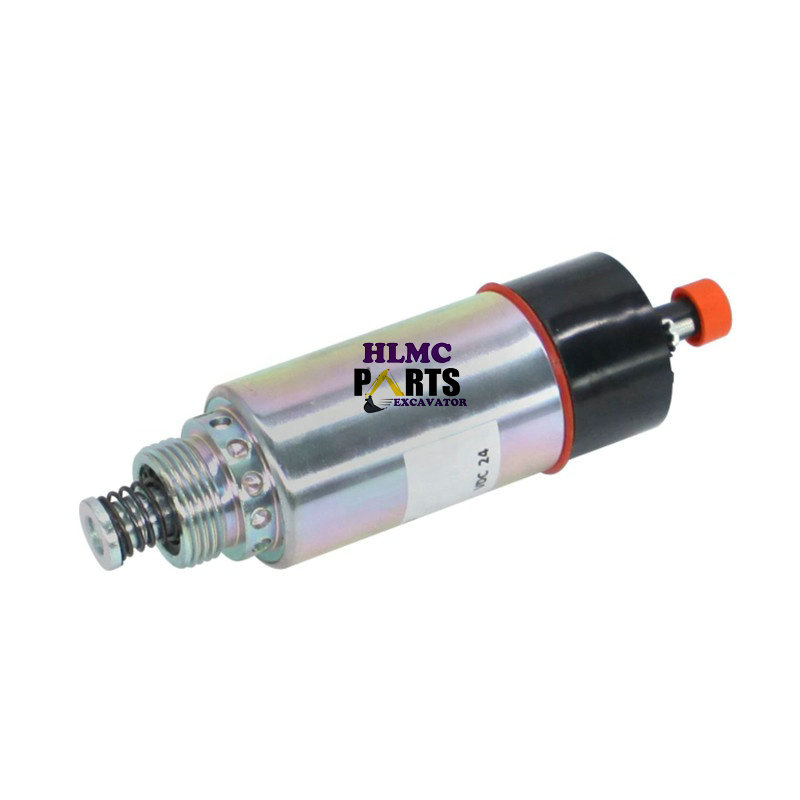

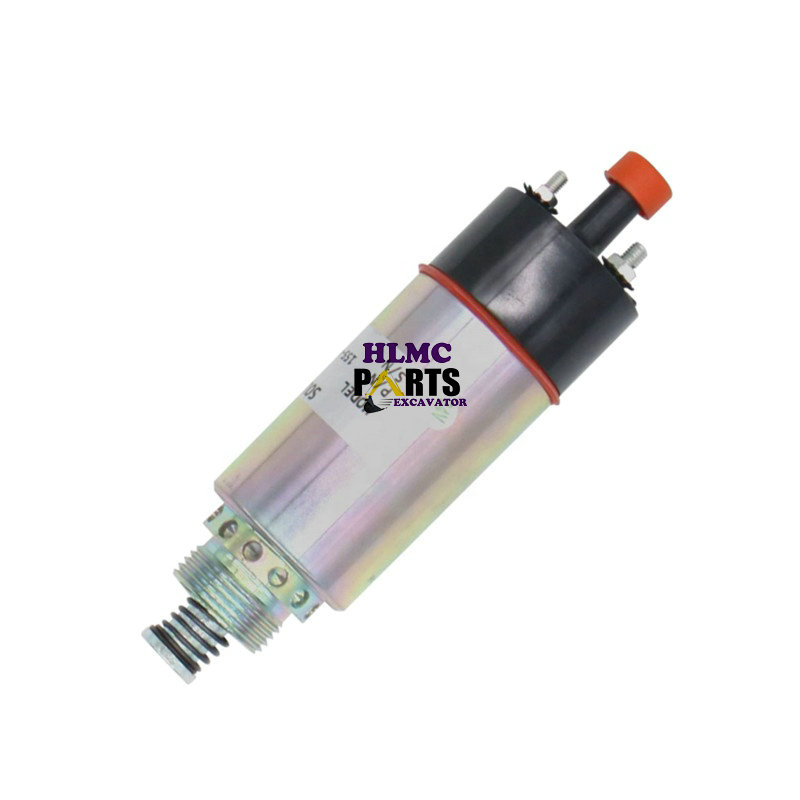

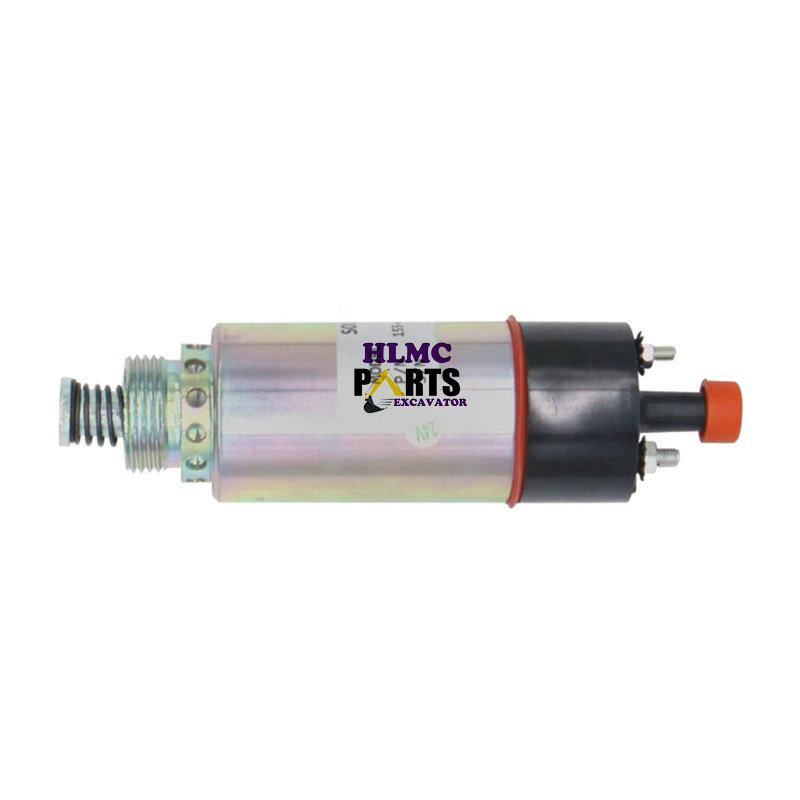

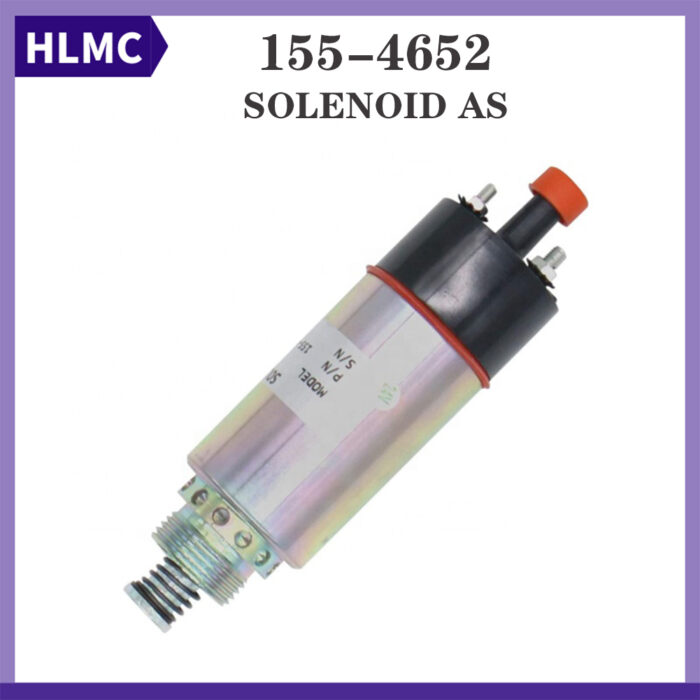

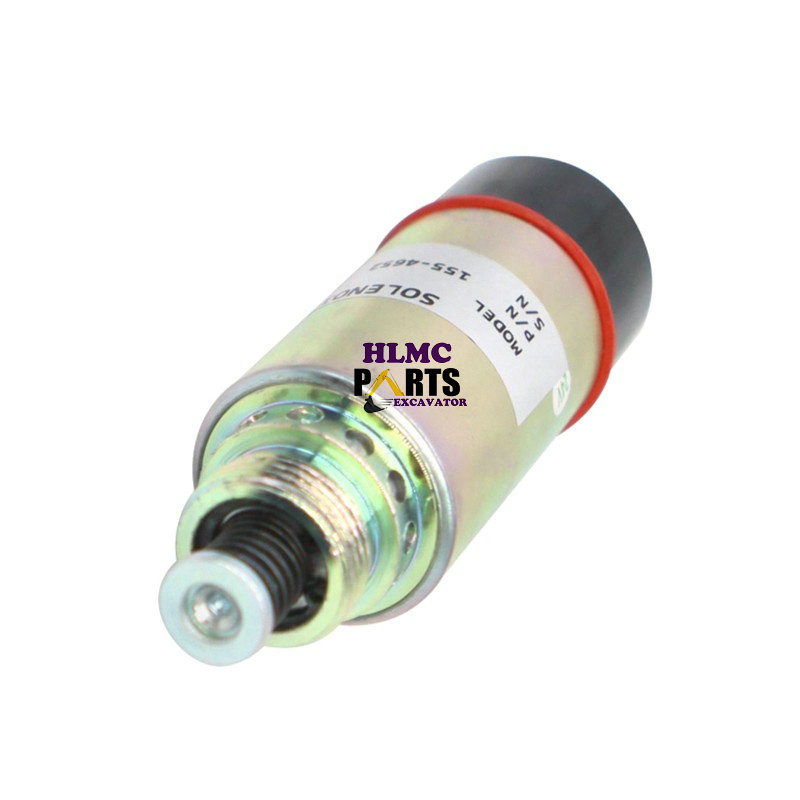

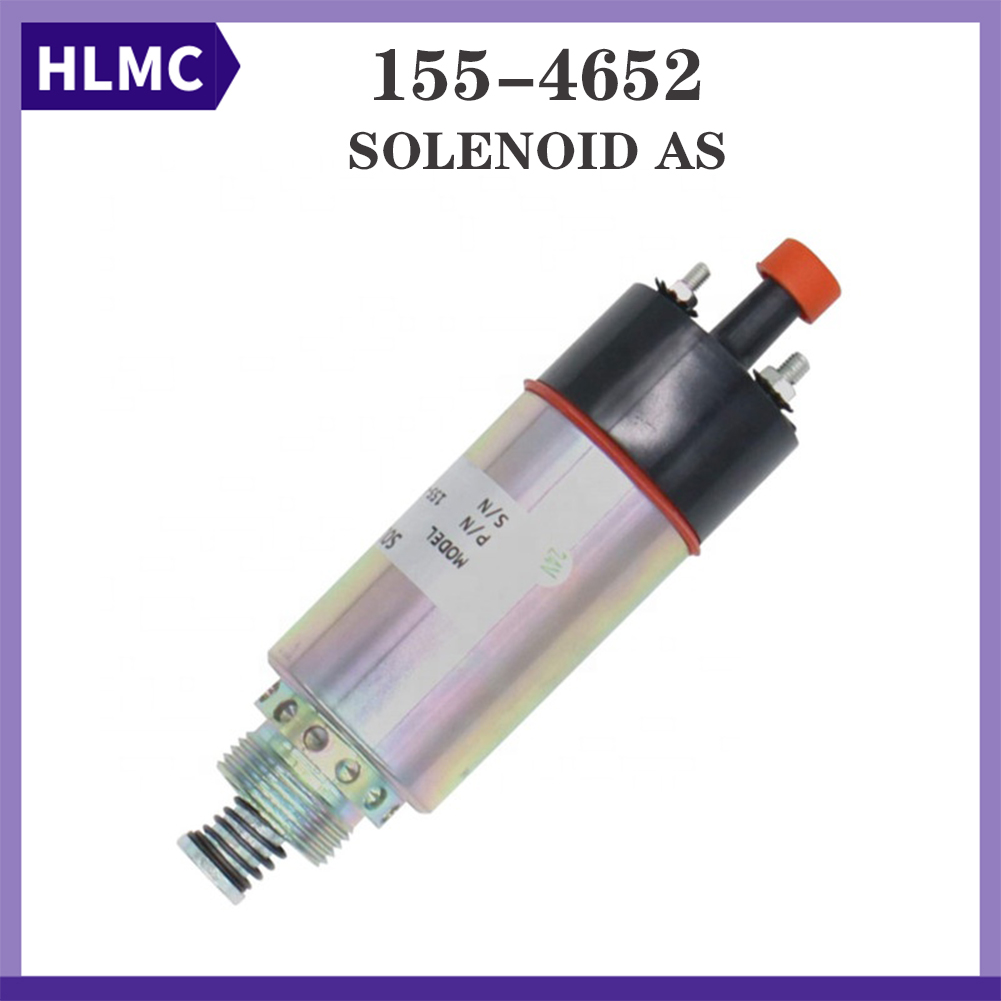

CA1554652 155-4652 1554652 24V Stop Cut Off Solenoid Valve Fuel Flameout Shutdown Solenoid For 325 E325 Excavator Parts

CA1554652 155-4652 1554652 24V Stop Cut Off Solenoid Valve Fuel Flameout Shutdown Solenoid For 325 E325 Excavator Parts

Attributes:

• Fuel shutoff solenoid assembly
• Voltage: 24 VDC
• Type: Permanent magnet latch
• Thread Size: 1-3/16-12
• Designed to work in unison with the rest of your Cat components to ensure maximum potential of your equipment.
• Rugged construction for long service life

SPECIFICATIONS FOR PART NUMBER 155-4652

1. Voltage (volts): 24

2. Outside Diameter (mm): 49

3. Length (mm): 166.2 (Latched)

4. Overall Length (mm): 183.2 (Unlatched)

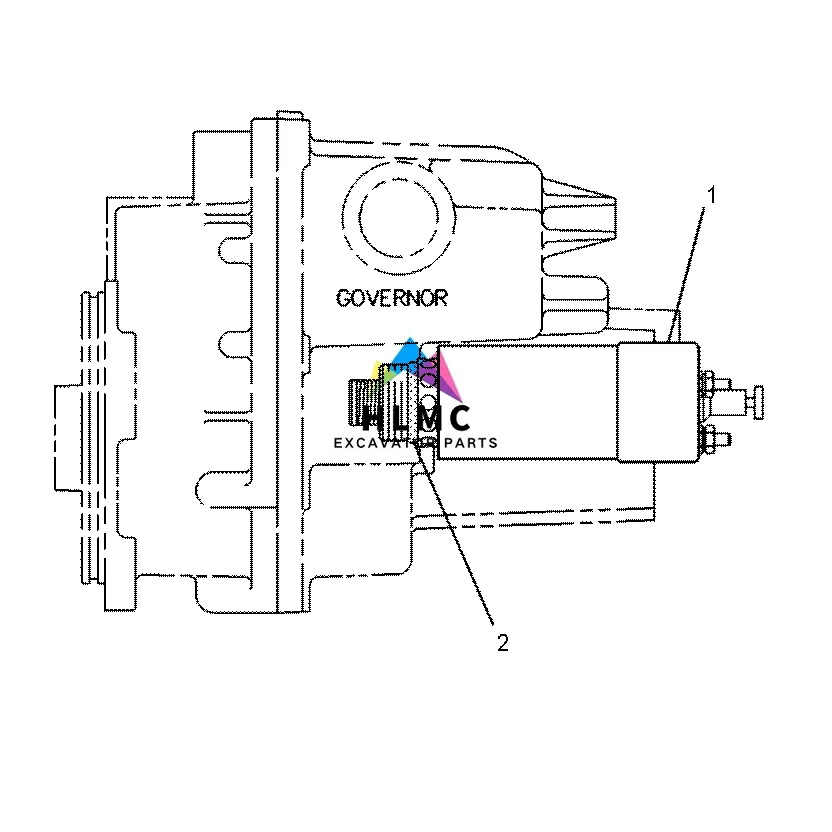

155-4652 Part Number on catalog scheme: 1

Compatible equipment models: 155-4652:

1. EXCAVATOR 320B 322B L 322B LN 322C 322C FM 325B L
2. INDUSTRIAL ENGINE 3114 3116 3126
3. INDUSTRIAL TRACTOR TK371 TK381
4. INTEGRATED TOOLCARRIER IT12B IT24F IT28F IT28G IT38F IT38G IT62G
5. KNUCKLEBOOM LOADER 539
6. MARINE ENGINE 3116 3126
7. MOTOR GRADER 120H 120H ES 120H NA 135H 135H NA
8. PIPELAYER 561M
9. TRACK LOADER 953C 963B 963C
10. TRACK-TYPE TRACTOR D5M D6M
11. VIBRATORY COMPACTOR CB-634C CP-563 CS-531C CS-531D CS-533C CS-
533D CS-563C CS-563D CS-573C CS-573D CS-583C CS-583D
12. WHEEL FELLER BUNCHER 533 543 TK370 TK380
13. WHEEL LOADER 924F 928G 938F 938G 950F 950F II 950G 960F 962G
14. WHEEL SKIDDER 525B 535B
15. WHEEL TRACTOR 613C II
16. WHEELED EXCAVATOR M318 M320 M325B Caterpillar
