E320D 330C E336D C9 Timing Speed Sensor 245-4630 Crankshaft Position Switch Sensor 109-7194 109-7195

Description

E320D 330C E336D C9 Timing Speed Sensor 245-4630 Crankshaft Position Switch Sensor 109-7194 109-7195

Product Features

CAT passive speed sensors do not require any external power supply. The output signal is alternating current, and the waveform function of the actuator is generally sinusoidal in nature. Both voltage and frequency are proportional to the superficial velocity of the actuator as it passes the sensor pole piece. Dual variable reluctance is just a combination of two passive overmolded sensors with a bracket.

Specifications for Part No. 245-4630

• Overall length (mm): 64
• Aperture (mm): 18.1
• Sensor Type: Speed
• Insert length (mm): 22.61
• Number of connector pins: 2 pins

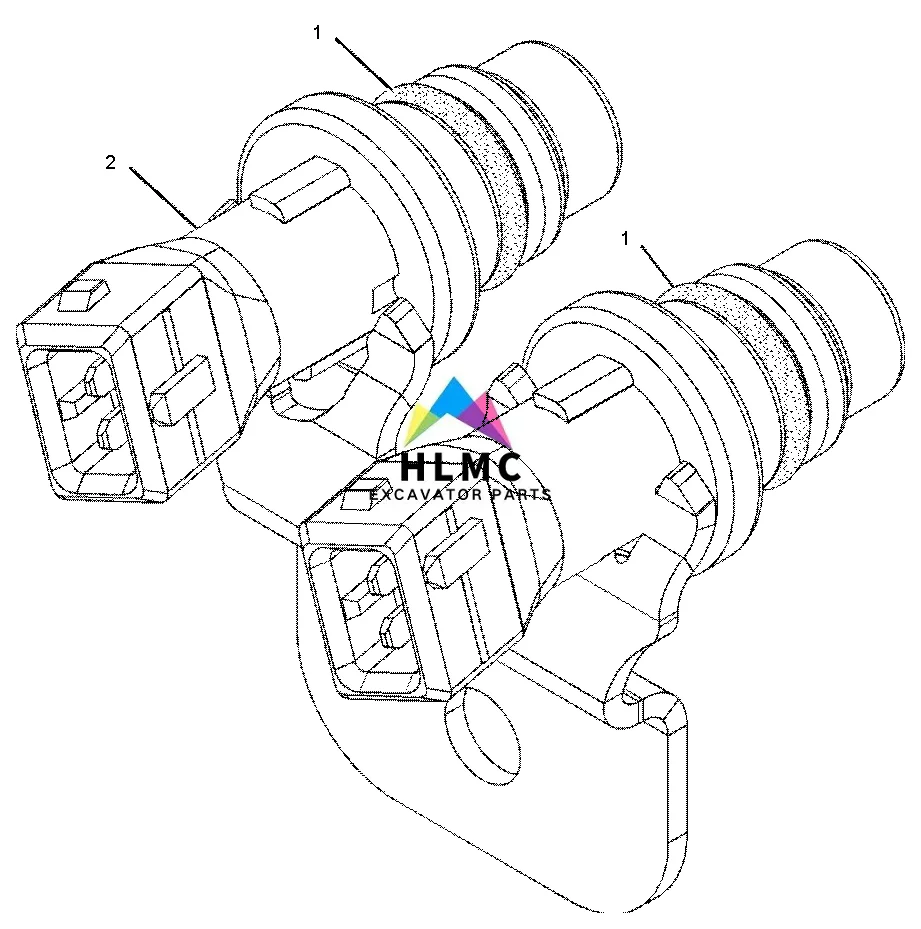

245-4630 Part Number on catalog scheme: 2

Compatible equipment models: 245-4630:

1. ARTICULATED TRUCK 725C
2. ASPHALT PAVER AP-1055D AP-755 BG-2455D BG-260D
3. CHALLENGER MTC735
4. COLD PLANER PM-102
5. EXCAVATOR 322C 322C FM 324D 324D FM 324D FM LL 324D L 324D LN
325C 325C FM 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D
329D L 329D LN 330C 330C FM 330C L 330C MH 330D 330D FM 330D L 330D LN
330D MH 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E
LN 336F L 340D L 340D2 L 568 FM LL M325D L MH M325D MH
6. FORWARDER 584
7. GEN SET ENGINE 3126B
8. GENERATOR SET C9
9. INDUSTRIAL ENGINE 3126B C-9 C4.4 C7 C9 C9.3
10. INTEGRATED TOOLCARRIER IT38G II IT62G II IT62H
11. LANDFILL COMPACTOR 816F II
12. LOGGER 322C
13. MARINE ENGINE 3126B C7 C9
14. MOBILE HYD POWER UNIT 324D LN 325C 325D 325D L 329D L 330C 330D
330D L 336D L 336E 336E HVG
15. MOTOR GRADER 120H 120K 120K 2 12H 12K 12M 12M 2 12M 3 12M 3 AWD
135H 140G 140K 140K 2 140M 140M 2 140M 3 140M 3 AWD 160K 160M 160M 2
160M 3 160M 3 AWD
16. PETROLEUM ENGINE 3126B C7 C9
17. PETROLEUM PACKAGE CX31-C9I
18. PETROLEUM TRANSMISSION TH31-E61
19. PIPELAYER 561N
20. PUMPER SPP101
21. SITE PREP TRACTOR 2864C 586C
22. SOIL COMPACTOR 815B 815F II
23. TRACK FELLER BUNCHER 2290 2390 2391 2491 2590 511 521 521B 522
522B 532 541 541 2 551 552 552 2 TK711 TK721 TK722 TK732 TK741 TK751
TK752
24. TRACK LOADER 953C 963C 973C 973D
25. TRACK-TYPE TRACTOR 30/30 D5N D6N D6R D6R II D6R III D6R STD D6T
D6T LGP D6T LGPPAT D6T XL D7E D7E LGP D7R XR DEUCE
26. TRUCK ENGINE 3116 3126 3126B 3126E C-9 C7 C9
27. WHEEL DOZER 814F II
28. WHEEL FELLER BUNCHER 573
29. WHEEL HARVESTER 570B
30. WHEEL LOADER 938G II 950G II 950H 962G II 962H 966K 966M 966M XE
972K 972M 972M XE
31. WHEEL SCRAPER 627G 637D 637E 637G
32. WHEEL SKIDDER 525C 535C 545C
33. WHEEL TRACTOR 627H 637G
34. WHEEL TRACTOR-SCRAPER 627K 627K LRC
35. WHEELED EXCAVATOR M325C MH M330D Caterpillar
